c. Memory Scheduling 💾

This feature was launched in AWS ParallelCluster 3.2.0 and can be enabled by enabling Slurm Memory Based Scheduling Enabled in the HeadNode configuration screen. See Slurm memory-based scheduling in the AWS ParallelCluster docs for more info.

Slurm supports memory based scheduling via a --mem or --mem-per-cpu flag provided at job submission time. This allows scheduling of jobs with high memory requirements, allowing users to guarantee a set amount of memory per-job or per-process.

For example users can run:

sbatch --mem-per-cpu=64G -n 8 ...

To get 8 vcpus and 64 gigs of memory.

In order to add in memory information, we have a managed post-install script that can be setup with Pcluster Manager. This script sets the RealMemory to 85% of the available system memory, allowing 15% to system processes.

Setup with 3.2.0

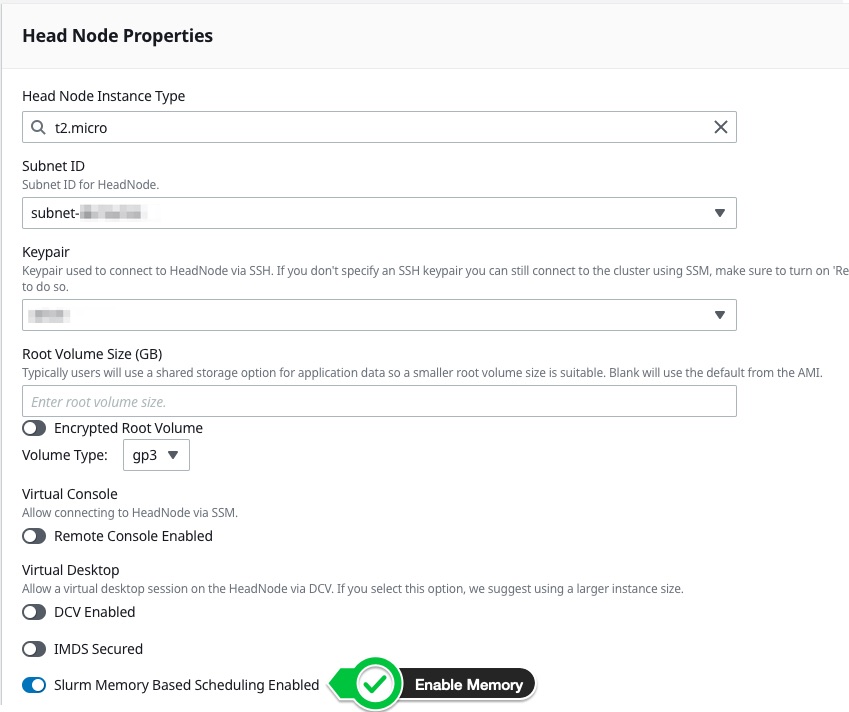

When setting up a cluster with version > 3.2.0, simply toggle Slurm Memory Based Scheduling Enabled to on:

Enable Memory Scheduling

Optionally you can setup the specific amount of memory that Slurm configures on each node, however I don’t reccomend doing this as it may results in a job over-allocating memory.

Setup with < 3.2.0

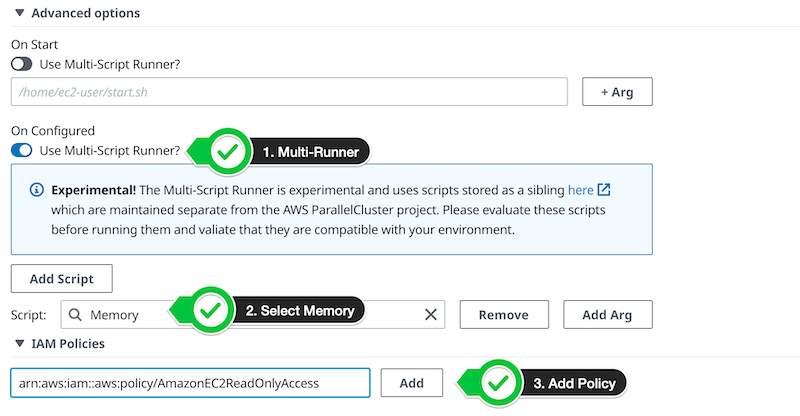

To enable this in versions < 3.2.0, create a new cluster and in the HeadNode configuration screen, click on the “Advanced” dropdown and add in the managed Memory script:

Enable Memory Script

Then add the following managed IAM policy to the head node:

arn:aws:iam::aws:policy/AmazonEC2ReadOnlyAccess

On the last screen your config should look similar to the following, note you’ll minimally need AmazonEC2ReadOnlyAccess and https://raw.githubusercontent.com/aws-samples/pcluster-manager/main/resources/scripts/mem.sh script.

HeadNode:
  InstanceType: c5a.xlarge
  Ssh:
    KeyName: keypair
  Networking:
    SubnetId: subnet-123456789
  Iam:
    AdditionalIamPolicies:
      - Policy: arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore
      - Policy: arn:aws:iam::aws:policy/AmazonEC2ReadOnlyAccess
  CustomActions:
    OnNodeConfigured:
      Script: >-
        https://raw.githubusercontent.com/aws-samples/pcluster-manager/main/resources/scripts/multi-runner.py
      Args:
        - >-
          https://raw.githubusercontent.com/aws-samples/pcluster-manager/main/resources/scripts/mem.sh
Scheduling:
  Scheduler: slurm
  SlurmQueues:
    - Name: cpu
      ComputeResources:
        - Name: cpu-hpc6a48xlarge
          MinCount: 0
          MaxCount: 100
          Instances:
            - InstanceType: hpc6a.48xlarge
          Efa:
            Enabled: true
      Networking:
        SubnetIds:
          - subnet-123456789
        PlacementGroup:
          Enabled: true
Region: us-east-2
Image:
  Os: alinux2

Test

When the cluster has been created you can check the memory settings for each instance:

$ scontrol show nodes | grep RealMemory
NodeName=cpu-dy-cpu-hpc6a48xlarge-1 CoresPerSocket=1
...
   RealMemory=334233 AllocMem=0 FreeMem=N/A Sockets=96 Boards=1
...

You’ll see that for the hpc6a.48xlarge instance, which has 384 GB of memory that RealMemory=334233 or 384 GB * .85 = 334.2 GB.

To schedule a job with memory constraints you can use the --mem flag. See the Slurm sbatch docs for more info.

$ salloc --mem 8GB

You can see the requested memory for that job by running:

squeue -o "%.18i %.9P %.8j %.8u %.2t %.10M %.6D %.5m %.5c %R"

JOBID PARTITION     NAME     USER      ST    TIME  NODES MIN_M MIN_C    NODELIST(REASON)
3       cpu         interact ec2-user  R     12:25 1     8G    1      cpu-dy-cpu-hpc6a48xlarge-1
